JYJ電機引接線
| JYJ125 JYJ155 JYJ155 — 1140V |
| 125℃/155℃輻照交聯阻燃聚烯烴絕緣電機引接線（環保） |
|
產品說明： ● 額定溫度：125℃，155℃ ● 額定電壓：660V/750V/1140V ● 參考標準：JB/T 6213 ● 導體使用單支或絞合0.5-120mm2鍍錫或裸銅 ● XLPE絕緣，符合ROHS環保標準 ● 絕緣厚度均勻、易裁線、易剝皮 ● 用于B級，F(xiàn)級電機引接線 |
PRODUCT DESCRIPTION ● Rated temperature: 125℃，155℃ ● Rated voltage: 660V/750V/1140V ● Reference standard: JB/T 6213 ● Solid or standard , tinned or bare copper conduct or 0.5-120mm2 ● XLPE insulation ,comply with ROHS environmental standard ● Uniform insulation thickness to ensure easy stripping and cutting ● For used leads wiring of B, F insulation class motor |
 |
|
印字 MARKING JYJ125 （）mm2 125℃ 660V --CHANG ZHOU PAINUI — LF JYJ155 （）mm2 155℃ 750V --CHANG ZHOU PAINUI — LF JYJ155-1140V （）mm2 155℃ 750V --CHANG ZHOU PAINUI — LF |
| 產品結構 CABLE CONSTRUCT |
|

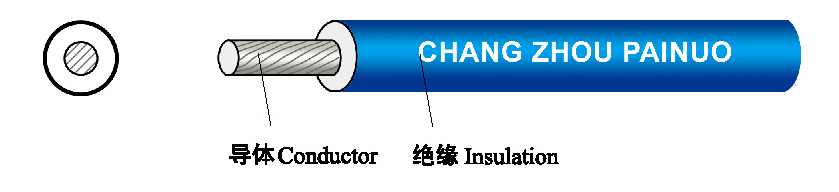

導體 CONDUCTOR |
絕緣 INSULATION |
MAX導體電阻 MAX.COND. RESISTANCE （Ω/Km,20℃） |
25℃時空氣敷設載流量25℃CAIRLAYING CARRYING CURRENT (A) |
標準長度 STANDARD PUT-UP (M/COIL) |
|||
|
規格 AWG |
構造 CONSTRUCTION |
外徑 DIA. |
厚度 THICKNESS |
標稱外徑 O.D. |
|||
| (No./mm) | (mm) | （mm） | (mm) | ||||
| 0.5 | 16/0.2 | 0.95 | 0.6 | 2.2±0.1 | 40.1 | 15 | 200 |
| 0.75 | 24/0.2 | 1.25 | 2.50±0.1 | 26.7 | 17 | ||
| 1.0 | 32/0.2 | 1.35 | 2.60±0.1 | 20.0 | 19 | ||
| 1.5 | 30/0.25 | 1.65 | 0.7 | 3.15±0.1 | 13.7 | 24 | 100 |
| 2.5 | 49/0.25 | 2.1 | 3.65±0.1 | 8.21 | 33 | ||
| 4.0 | 56/0.3 | 2.7 | 4.2±0.1 | 5.09 | 45 | ||
| 6.0 | 84/0.3 | 3.3 | 0.8 | 5.1±0.1 | 3.39 | 58 | |
| 10 | 84/0.4 | 4.7 | 6.6±0.2 | 1.95 | 80 | ||
| 16 | 126/0.4 | 5.8 | 1.0 | 8.2±0.2 | 1.24 | 107 | |
| 25 | 196/0.4 | 7.4 | 9.5±0.2 | 0.795 | 138 | ||
| 35 | 276/0.4 | 8.6 | 11.1±0.2 | 0.565 | 171 | ||
| 50 | 396/0.4 | 10.4 | 1.2 | 13.2±0.3 | 0.393 | 210 | |
| 70 | 360/0.5 | 12.5 | 15.0±0.5 | 0.277 | 269 | 50 | |
| 95 | 475/0.5 | 15.3 | 1.4 | 18.50±0.5 | 0.21 | 328 | |
| 100 | 509/0.5 | 15.8 | 19.50±0.5 | 0.196 | 358 | ||
| 120 | 608/0.5 | 17.0 | 20.50±0.5 | 0.164 | 420 | ||
| 注：單根導體結構見附表，系列外的結構和規格可按供需雙方商定。 |
